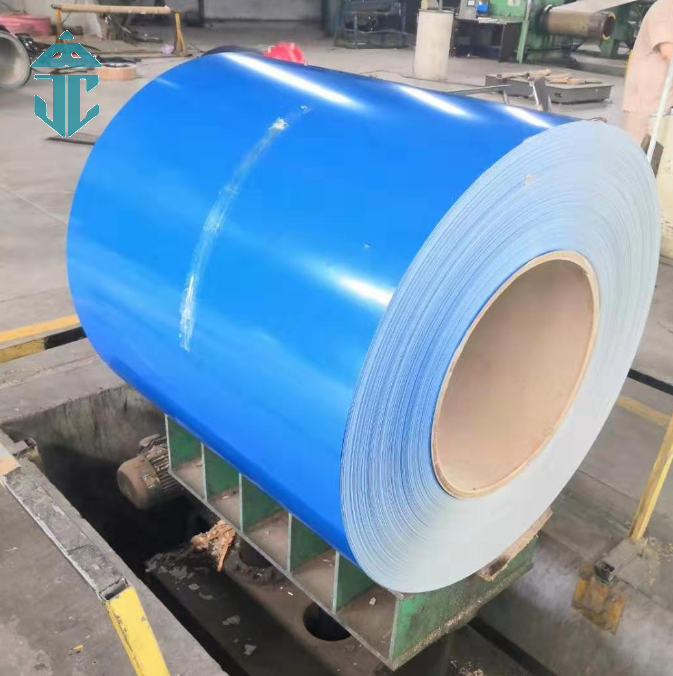

PGL Coil uses DX51D+AZ, and q195 and galvalume steel sheet as the substrate, PE coating is our most commonly produced, it can be used for up to 10 years.

We can also customize the color of PPGL Coil, such as wood grain, matt.

PPGL sheet in coil is a kind of steel Coil with PE, HDP, PVDF, and other coatings. It has good processing and forming, good corrosion resistance, and the original strength characteristics of the steel plate.

Color Coated Steel Coil Price: Factors Affecting

The factors affecting the price of color coated steel coils are mainly the raw material (basic steel) and the thickness of the zinc layer, the thickness of the paint, the brand of the paint material, the thickness of the steel coil and the packaging method.

1 Zinc layer thickness:

The price depends on different thicknesses of zinc. For example, the prices of 20 grams of zinc and 50 grams of zinc vary greatly. If the customer has no requirements for zinc, it is recommended to choose a steel coil with a zinc content of about 23-25 grams. However, PPGL also needs to indicate the aluminum content, and the price of PPGL with 25% aluminum content and 55% aluminum content is quite different. If the customer uses the general environment, you can choose about 25% aluminum content. ; If used in humid, outdoor and year-round tropical climates, please choose PPGL with higher Al-Zn content.

2 Paint thickness:

ppgi can be divided into single picture and double picture. Generally, the thickness of the single-coat topcoat is 11-30um, and the thickness of the backcoat is 5-10um. The thickness of double paint PPGI topcoat is 11-30um, and the thickness of backcoat is 11-30um. The price of single-layer PPGI is lower than that of double-layer PPGI.

3 Coil basic steel thickness:

The thinner the coil, the higher the price. For example, the price of 0.13-0.16 is higher, the price of 0.3-0.45 has a small change, and the price of 0.45-0.7 is basically the same. Because the thinner the area of the color-coated roll under 1 ton, the more paint is used and the longer the processing time.

4 packs:

The packing includes simple packing, standard export packing and special packing.

The packaging is simple, suitable for short-distance transportation, the outer layer is protected by waterproof kraft paper, the protection performance is simple, and the price is cheap.

The outer surface of standard export packaging is waterproof kraft paper and galvanized iron packaging. The outside of the coil is also protected by galvanized iron. Used for long-distance transportation and steel wire reinforcement in containers. It can better protect the surface of the prepainted coil. And the waterproof effect is better.

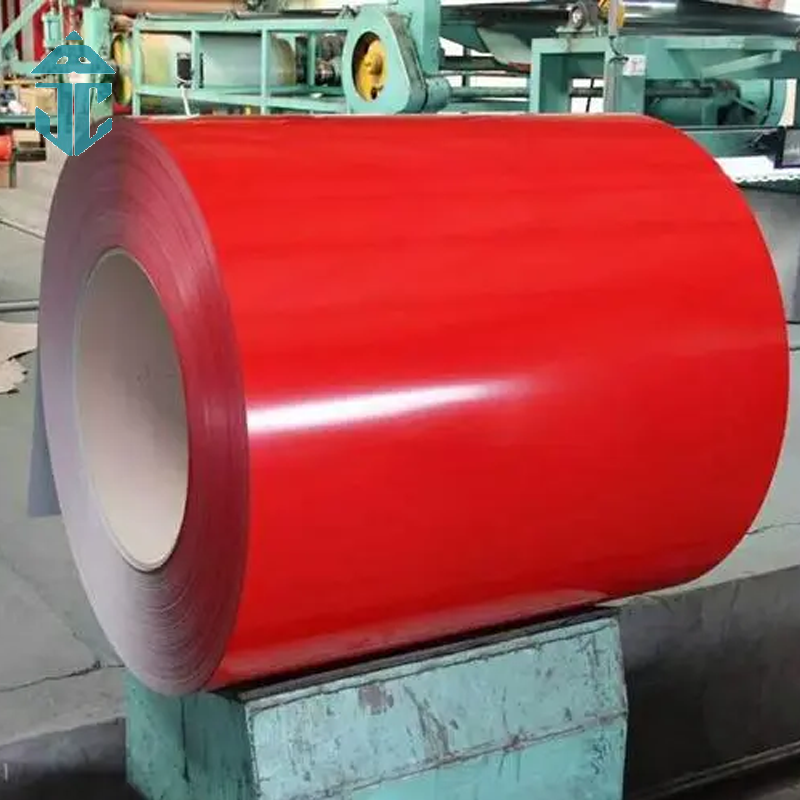

PGL coils use DX51D+AZ, Q195 and galvalume steel as substrates, and PE coating is our most commonly produced, which can be used for up to 10 years.

Baojiangcheng can also customize the color of PPGL coils, such as wood grain and matte.

PPGL coil is a steel coil coated with PE, HDP, PVDF, etc. It has good processing formability, good corrosion resistance, and the original strength characteristics of the steel plate.

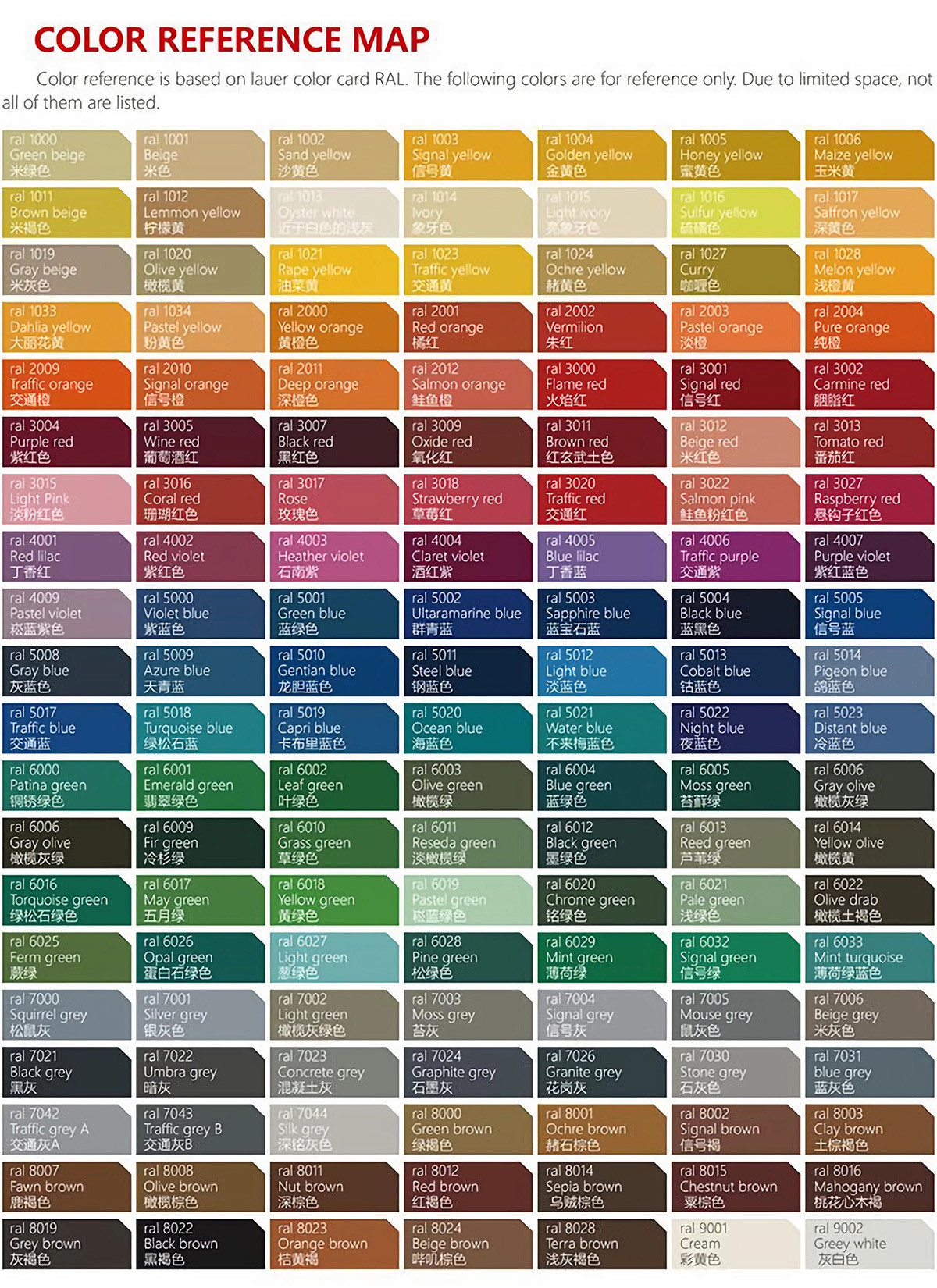

Kind of pattern/colors as you drawing, you can also send us sample for processing.
