316L stainless steel Plate

316L is a stainless steel material grade, AISI 316L is the corresponding American grade, SUS 316L is the corresponding Japanese grade.

China's uniform digital code for S31603, the standard grade for 022CR17NI12MO2 (new standard), the old grade for 00CR17NI14MO2, said it mainly contains Cr, Ni, Mo, the number says it probably contains a percentage.

316L has a wide range of applications in the chemical industry because of its excellent corrosion resistance. 316L is also a derivative of 18-8 austenitic stainless steel, with 2 ~ 3% Mo element added.

On the basis of 316L, many kinds of steel are also derived. For example, 316Ti is derived after adding a small amount of Ti, 316N is derived after adding a small amount of N, and 317L is derived by increasing the content of Ni and Mo.

Most of the existing 316L in the market are produced according to American standards.

For cost consideration, steel mills generally put the Ni content of products as far as possible by the lower limit.

The American standard stipulates that the Ni content of 316L is 10 ~ 14%, while the Japanese standard stipulates that the Ni content of 316L is 12 ~ 15%.

According to the minimum standard, there is a 2% difference between the American standard and Japanese standard in the Ni content, which is still quite huge in the price. Therefore, customers still need to see clearly when buying 316L products, whether the products refer to ASTM or JIS standards.

The Mo content of 316L makes the steel have excellent pitting resistance and can be safely used in environments containing Cl- and other halogen ions.

Because 316L is mainly used for its chemical properties, steel mills have slightly lower requirements for surface inspection of 316L (relative to 304), and customers with higher surface requirements should strengthen surface inspection.

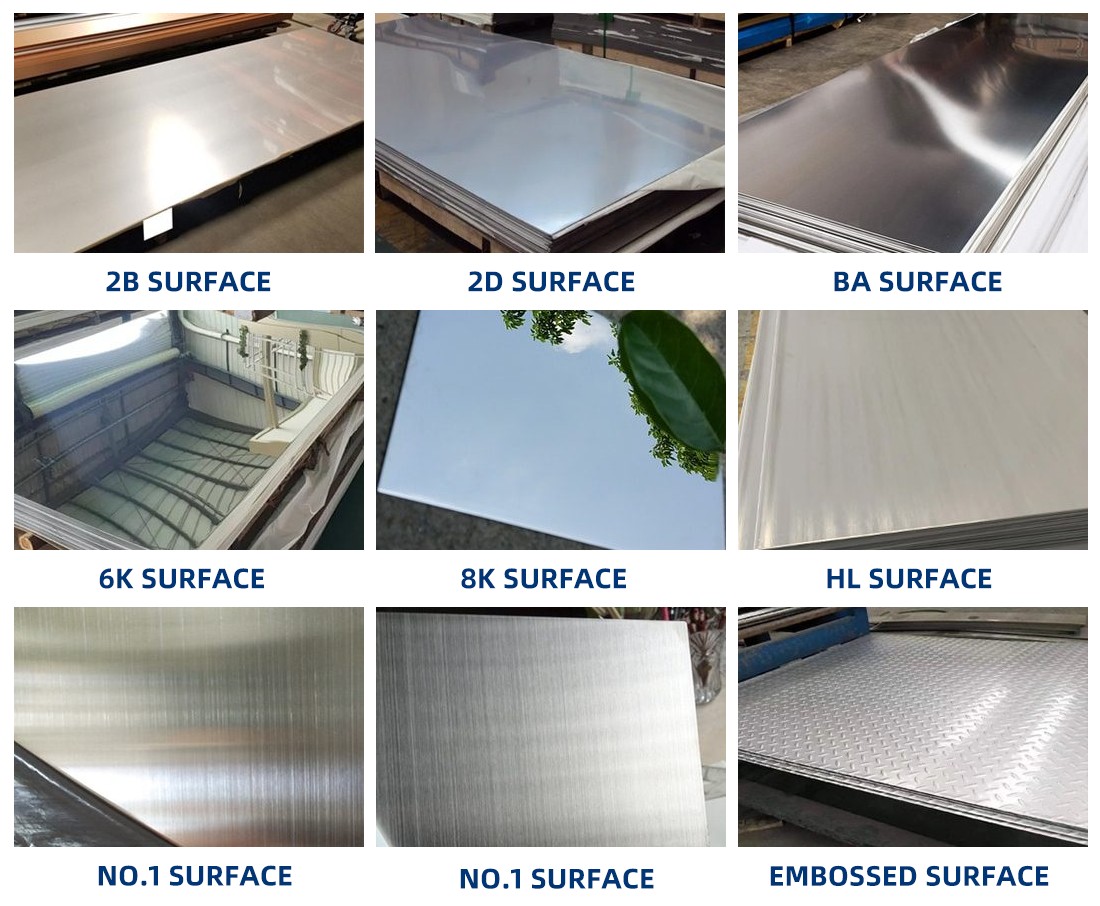

Surface and Application :
