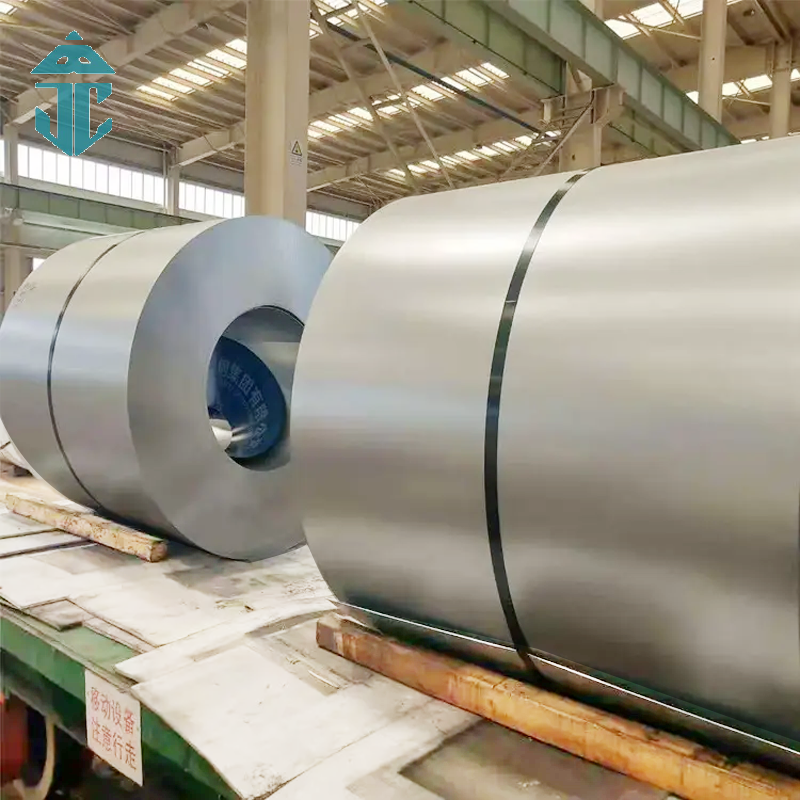

DC01-06 Galvanized Steel Coil

Galvanized steel coils, the steel sheet is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with zinc melted to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.

Phone：+86 15861661838

WhatsApp：+86 15861661838

Email：wxbjc02@bjcmetal.com

INQUIRY NOW

PRODUCT DESCRIPTION

Galvanized Steel Coil Uses

Galvanized steel coil has a wide range of applications, and its advantage is that it has a long anti-corrosion period. It is mainly used for home appliances, office panels, roof sheets, automotive panels, construction and substrate of prepainted steel coils.

Car board

The use of automotive plates must first be stamped and formed, and the steel plate is stamped into the required shape and size of the part.

Then spot welding, as an important welding method for thin plate connection, has a wide range of applications in the manufacturing industry, especially in the automotive industry.

Galvanized roof sheet

The performance requirements of galvanized roof panels mainly include the mechanical properties of the material (tensile strength, yield strength, elongation), coating performance (coating type, coating thickness and coating adhesion)

Home appliance office board

Including air conditioners, washing machines, refrigerators, photocopiers, etc., household galvanized sheets are mainly used for general forming applications and stamping.

Substrate

Another use of galvanized steel coils is to be used as the substrate of prepainted steel coils. prepainted steel coils have polyethylene coatings than galvanized coils and are more durable.

PRODUCT NAME	galvanized steel coil
STANDARD	EN10346, JIS G3302, ASTM A653,AS 1397,GB/T 2518
STEEL GRADE	DX51D, DX52D, DX53D, DX54D,DX55D,DX56D,DX57D, S220GD, S250GD,
	S280GD, S320GD,S350GD, S390GD,S420GD,S450GD,,S550GD, SGHC,
	SGH340, SGH400, SGH440, SGH490,SGH540, SGCC,SGCH,SGCD1,
	SGCD2, SGCD3, SGCD4,SGC340, SGC400 , SGC440, SGC490,SGC570;
	CS-A,CS-B,CS-C,GRADE 33,GRADE 37.GRADE 40,GARDE 50,
	GRADE60,GRADE70,GRADE80G1,G2,G3,G250,G300,G450,G550 AS REQUIREMENT
TYPE	COIL/SHEET/PLATE/STRIP
THICKNESS	0.12MM-6.0MM OR 0.8MM/1.0MM/1.2MM/1.5MM/2.0MM
WIDTH	600MM-1800MM OR 914MM/1000MM/1200MM/1219MM/1220MM/1524MM
ZINC COATING	Z30G/M2-Z600G/M2
SPANGLE TYPE	ZERO SPANGLE , SMALL SPANGLE , REGULAR SPANGLE
SURFACE STRUCTURE	OILED (O),PASSIVATED(C),PASSIVATED AND OILED (CO)
SURFACE STRUCTURE	,SEALED (S),PHOSPHATE (P),PHOAPHTE AND OILED (CO)
COIL WEIGHT	3 TONS -8TONS
COIL ID	508MM/610MM

Surface Treatment Of Galvanized Steel Coil

Surface treatment type	Code	Feature
Chromic acid treatment	C	Good corrosion resistance, suitable for bare state
Chromic acid treatment + oiling	S	Good corrosion resistance
Phosphoric acid treatment (including sealing treatment)	P	A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (including sealing treatment) + oiling	Q	It has certain corrosion resistance, good paint performance, and prevents rust during transportation and storage
Phosphoric acid treatment (excluding sealing treatment)	T	A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (excluding sealing treatment) + oiling	V	Have certain corrosion resistance, good paint performance, and prevent rust
Oiled	O	Prevent rust during transportation and storage
No treatment	M	Suitable for immediate painting

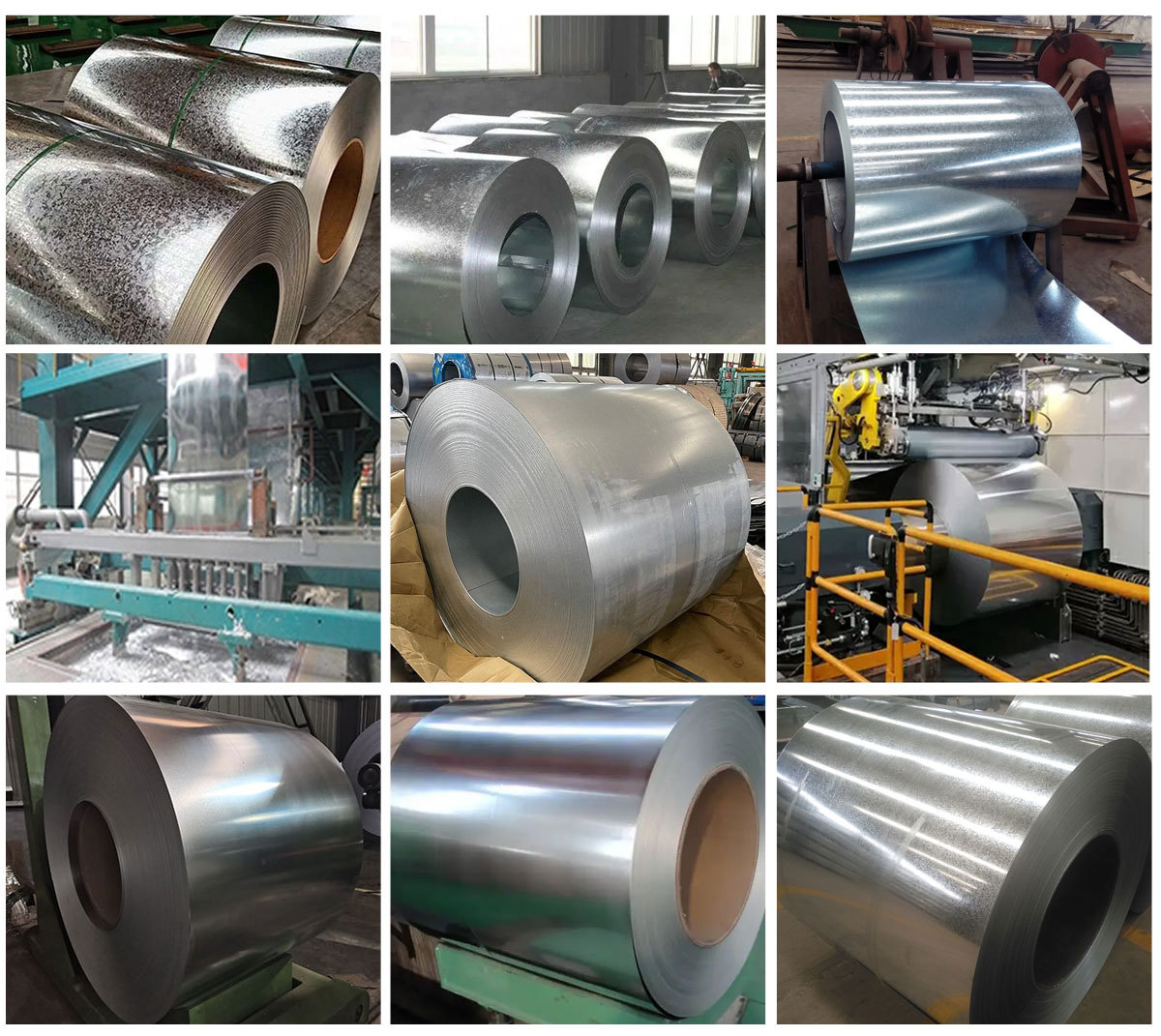

PRODUCT SHOW

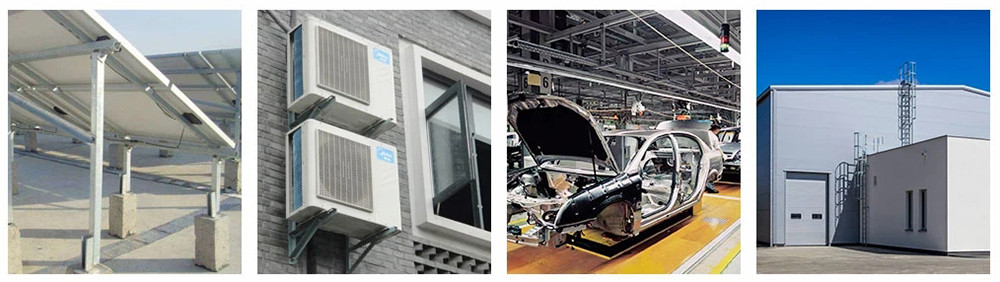

APPLICATION

Galvanized sheet coil is mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries. The construction industry is mainly used to manufacture anti-corrosion industrial products and panels, roof grilles, balcony panels, window sills, newsstands, warehouses, rolling doors, heaters, rainwater pipes, etc. , civil chimneys, kitchen utensils, etc; the automobile industry is mainly used for the manufacture of corrosion-resistant parts of cars, etc; agriculture, animal husbandry and fishery are mainly used for food storage and transportation, meat and aquatic products freezing processing tools, etc; commercial products are mainly used as materials Storage, transportation, packaging, etc; Household appliances such as refrigerators, washing machines, switch cabinets, air conditioners, microwave ovens, bread machines, copiers, vending machines, electric fans, vacuum cleaners, etc.

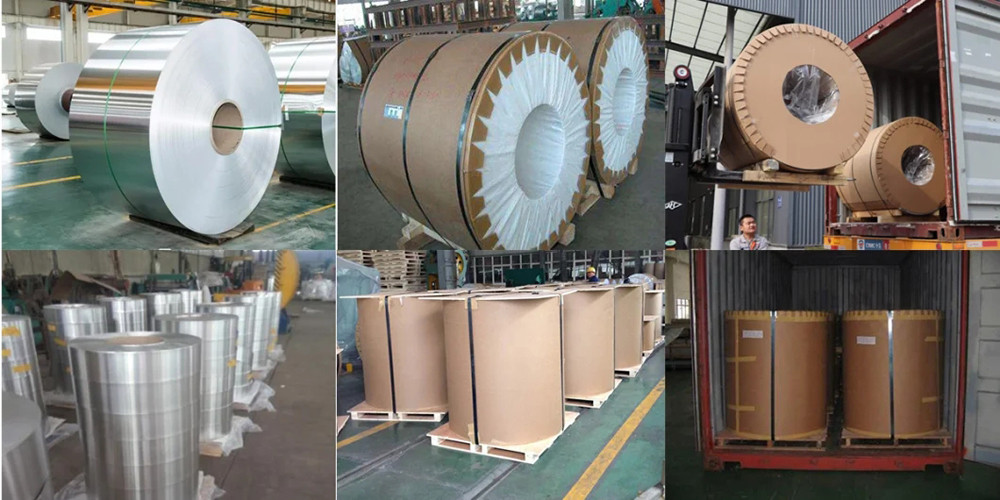

PACKAGE

FAQ

Q: Can I get samples before order ?
A: Yes, of course.We can produce by your samples or technical drawings ;
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory ;
Q: How can I get a quotation from you ?
A: You can leave us message or send us by email , and we will reply every message and email in time or we may talk on line ;
Q: What product information do I need to provide ?
A: You need to provide the material, thickness, width, length or any other detailes and the number of tons you want to purchase ;
Q: Does the product have quality inspection before loading ?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely ;
Q: How do we trust your company ?
A: We specialise in steel business for years . You are welcome to investigate in any ways .
