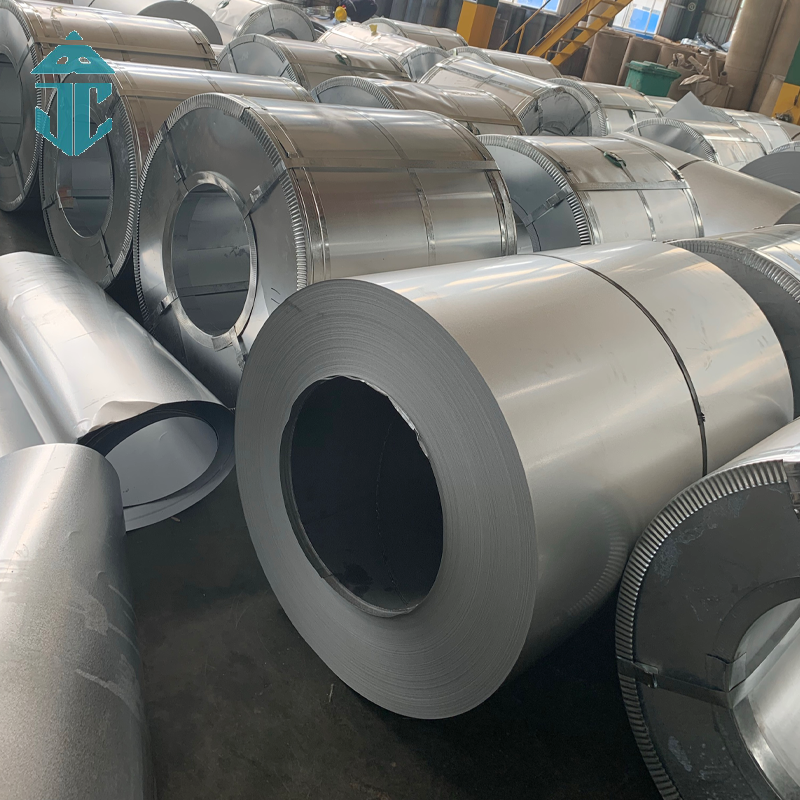

SGCC Galvanized Steel Coil
Galvanized steel coils, the steel sheet is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with zinc melted to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.
Phone:+86 15861661838
WhatsApp:+86 15861661838
Email:wxbjc02@bjcmetal.com
PRODUCT DESCRIPTION

Galvanized Steel Coil Uses

Galvanized steel coil has a wide range of applications, and its advantage is that it has a long anti-corrosion period. It is mainly used for home appliances, office panels, roof sheets, automotive panels, construction and substrate of prepainted steel coils.
Galvanized steel coils, the steel sheet is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with zinc melted to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.


PRODUCT NAMEgalvanized steel coil
STANDARDEN10346,  JIS G3302, ASTM A653,AS 1397,GB/T 2518
   STEEL GRADEDX51D, DX52D, DX53D, DX54D,DX55D,DX56D,DX57D, S220GD, S250GD,
 S280GD, S320GD,S350GD, S390GD,S420GD,S450GD,,S550GD, SGHC,
SGH340, SGH400, SGH440, SGH490,SGH540, SGCC,SGCH,SGCD1,
SGCD2, SGCD3, SGCD4,SGC340, SGC400 , SGC440, SGC490,SGC570;
 CS-A,CS-B,CS-C,GRADE 33,GRADE 37.GRADE 40,GARDE 50,
GRADE60,GRADE70,GRADE80G1,G2,G3,G250,G300,G450,G550 AS REQUIREMENT
TYPECOIL/SHEET/PLATE/STRIP
THICKNESS0.12MM-6.0MM OR 0.8MM/1.0MM/1.2MM/1.5MM/2.0MM
WIDTH600MM-1800MM OR 914MM/1000MM/1200MM/1219MM/1220MM/1524MM
ZINC COATINGZ30G/M2-Z600G/M2
SPANGLE TYPEZERO SPANGLE , SMALL SPANGLE , REGULAR SPANGLE
SURFACE STRUCTUREOILED (O),PASSIVATED(C),PASSIVATED AND OILED (CO)
,SEALED (S),PHOSPHATE (P),PHOAPHTE AND OILED (CO)
COIL WEIGHT3 TONS -8TONS
COIL ID508MM/610MM

Surface Treatment Of Galvanized Steel Coil

Surface treatment typeCodeFeature
Chromic acid treatmentCGood corrosion resistance, suitable for bare state
Chromic acid treatment + oilingSGood corrosion resistance
Phosphoric acid treatment (including sealing treatment)PA certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (including sealing treatment) + oilingQIt has certain corrosion resistance, good paint performance, and prevents rust during transportation and storage
Phosphoric acid treatment (excluding sealing treatment)TA certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (excluding sealing treatment) + oilingVHave certain corrosion resistance, good paint performance, and prevent rust
OiledOPrevent rust during transportation and storage
No treatmentMSuitable for immediate painting

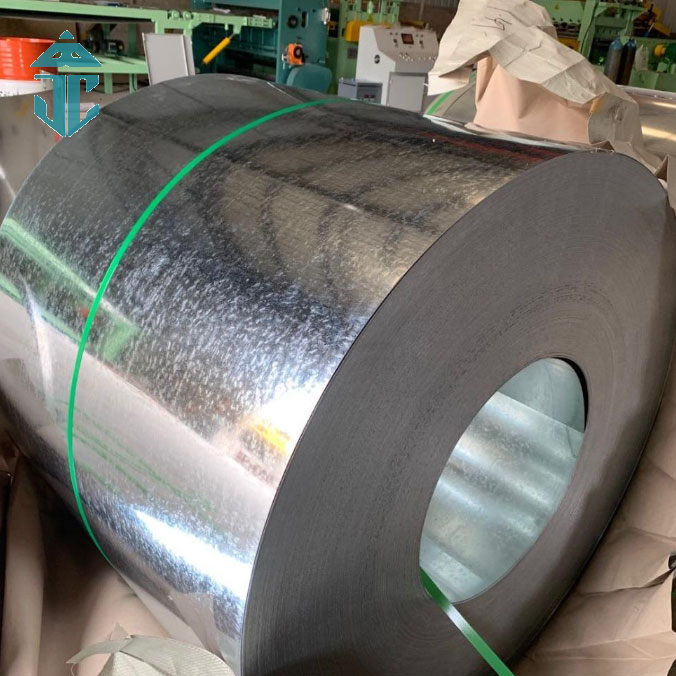

PRODUCT SHOW

coil (3).jpg

APPLICATION

Galvanized sheet coil is mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries. The construction industry is mainly used to manufacture anti-corrosion industrial products and panels, roof grilles, balcony panels, window sills, newsstands, warehouses, rolling doors, heaters, rainwater pipes, etc. , civil chimneys, kitchen utensils, etc; the automobile industry is mainly used for the manufacture of corrosion-resistant parts of cars, etc; agriculture, animal husbandry and fishery are mainly used for food storage and transportation, meat and aquatic products freezing processing tools, etc; commercial products are mainly used as materials Storage, transportation, packaging, etc; Household appliances such as refrigerators, washing machines, switch cabinets, air conditioners, microwave ovens, bread machines, copiers, vending machines, electric fans, vacuum cleaners, etc.

应用 (1).jpg

PACKAGE

卷 (5).jpg

FAQ

Q: Can I get samples before order ?
A: Yes, of course.We can produce by your samples or technical drawings ;
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory ;
Q: How can I get a quotation from you ?
A: You can leave us message or send us by email , and we will reply every message and email in time or we may talk on line ;
Q: What product information do I need to provide ?
A: You need to provide the material, thickness, width, length or any other detailes and the number of tons you want to purchase ;
Q: Does the product have quality inspection before loading ?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely ;
Q: How do we trust your company ?
A: We specialise in steel business for years . You are welcome to investigate in any ways .
